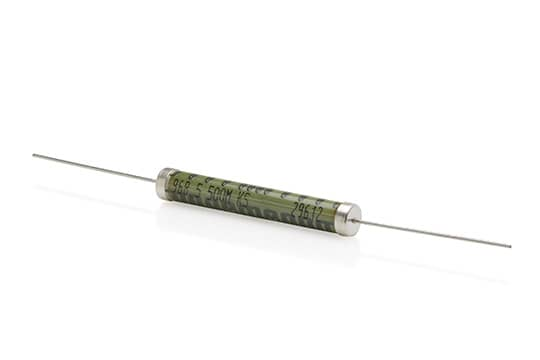

High-voltage resistors designed by EAK are low-induction, powerful and stable passive components. Strong ceramic bar as a support, to ensure that in extreme environmental conditions without failure to operate. We provide a tubular high voltage resistor whose parameters include output, voltage, resistance, voltage coefficient, temperature coefficient and tolerance. Our product portfolio ranges from standard products to products that are tailored to your specific requirements.
Specifications：
Resistance ranges： 10 Ω to 30 GΩ
Resistance Tolerance： ≥0.1%
Temperature Coefficient： 15 ppm /℃（ 20 ℃ to 80 ℃）
Operating voltage: up to 90 KV
provides protective layers and sheaths made of glass, epoxy and cement for use in air, insulating oils, SF6, silicone and all resin-based casting materials.
Advantage：
Excellent long-term stability
High pulse resistance
Low inductance
Low capacitance
High quality materials
Withstand extreme operating conditions
High thermal stability good insulation
Application：
High-voltage measurement and test technology
In charge and discharge resistor
X-ray generator for measuring resistance
Electrostatic coating
Defibrillator
Insulation
Tester empty bottle and full bottle tester
Spectrometer surface inspection,layer thickness measurement
