As digitization continues, the need for larger, more powerful data centers is becoming more and more important.Even today, data centers are considered a strategic location, and power failures can cause serious damage or security risks.The safety features of UPS, emergency power systems, or batteries are critical here and need to be checked regularly.To check the performance of these safety components, load cabinets are used to test the power supply of generators and electric generator. Generator load cabinet is an important tool to ensure the reliability and efficiency of emergency power supply system.
In addition to the security concept, the proper functioning of the server and all its electronic devices is also very important.Therefore, you must do a thorough build test before each time you debug the server.This involves checking not only the installation but also the air conditioning.Overheated electronic component can cause significant damage in the future.To prevent such incidents, it is recommended to purchase a load cabinet specifically designed to simulate future server performance and to simulate ohms and perceptual loads.

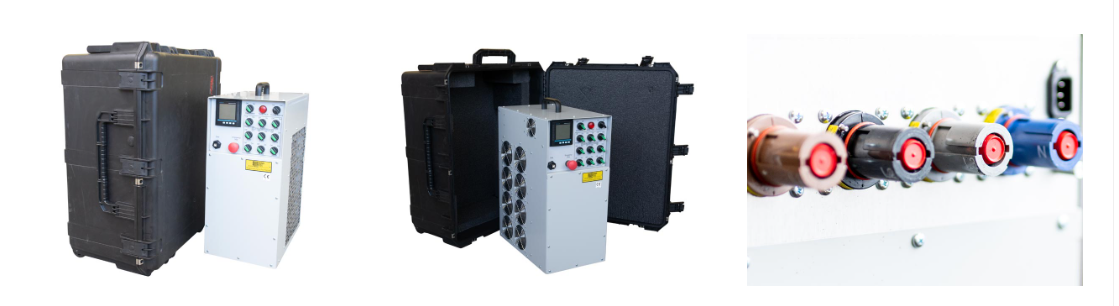

100kw load group
The compact portable load pack in the EAK 100 series is designed for output up to 100 kW.The resistor has a handle on the upper side of the housing.With a light weight of about 30kg, the resistors can be easily transported between different locations within the plant.Due to its compact size (565x 308x 718mm) , it is suitable for any standard door and can also be easily transported by car to different locations or use areas.Strong transport boxes can also be provided as accessories to ensure safe and convenient transport.
It operates with a simple toggle switch. These switches (in increments of 2 kW) are used to turn on power supplies up to 100 kW.Current, voltage and power are measured in three phases and displayed on a multifunctional display screen.As with the 300kw load group, the load comes with a plug-in system connection.This ensures a fast and secure connection to the load group. It should also be mentioned that the operator does not need any tools to connect the load cable. Ready-made connection cables of various lengths are also available.
100kw load group (3 ~ 400V) highlights:
Low noise due to the use of volume-optimized fans
Because of the low temperature coefficient of the resistor material, the power range is almost constant
The controller and fan can also be powered entirely by a load voltage
Three-phase measurement of current, voltage and power
Compact size, light weight//565x 308x 718mm (long x wide x high)//31kg

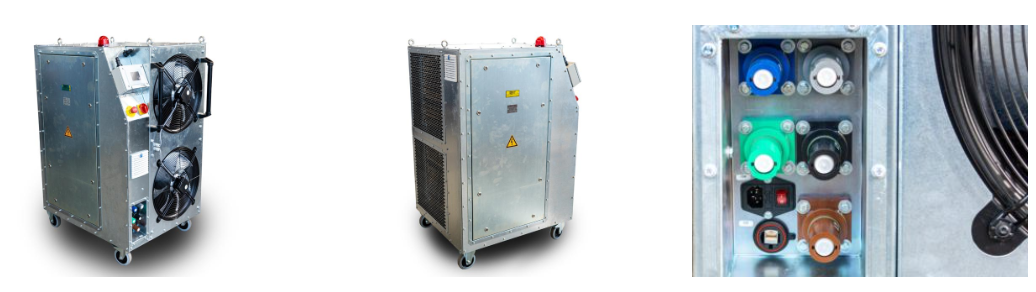

300 kW load group
The EAK 300 series mobile load group is designed for output up to 300 kW. The resistor has a moving frame equipped with a transport roller. This means that the resistors can be easily transferred between locations within the factory. Due to its compact size, it is suitable for any standard door.
The load resistor can also be easily and quickly lifted onto a trailer using additional ring bolts, making it easy to transport to a longer distance use location.
In the shortest possible time, multiple resistors can be connected to each other at the control side by means of a connected plug/socket without tools. User-friendly operation through touch screen. By networking multiple load groups, the power range of the system can be quickly and easily doubled or even tripled. In theory, because of these links, the power range can reach the MW range.
The load group can be operated directly through the touch screen on the resistance device or remotely through the panel. Optional cable extensions of various lengths are available for this purpose. Power can be preselected in increments of 1 kW and passed through the load to the test object. The power settings and error messages are displayed on the screen.
Load connections use a plug-in system as the standard. This ensures a fast and secure connection to the load group. It should also be mentioned that the operator does not need any tools to connect the load cable. Ready-made connection cables of various lengths are also available.
300kw load group (3 ~ 400V) highlight:
Low noise due to the use of volume-optimized fans
Because of the low temperature coefficient of the resistor material, the power range is almost constant
The shell plate with riveting and additional reinforcement is designed to be strong
1-230V auxiliary voltage connection for control unit and fan
The control unit and fan can also be powered entirely by a load voltage
Low operating temperature ensures safe and long-term operation
Small size, light weight
